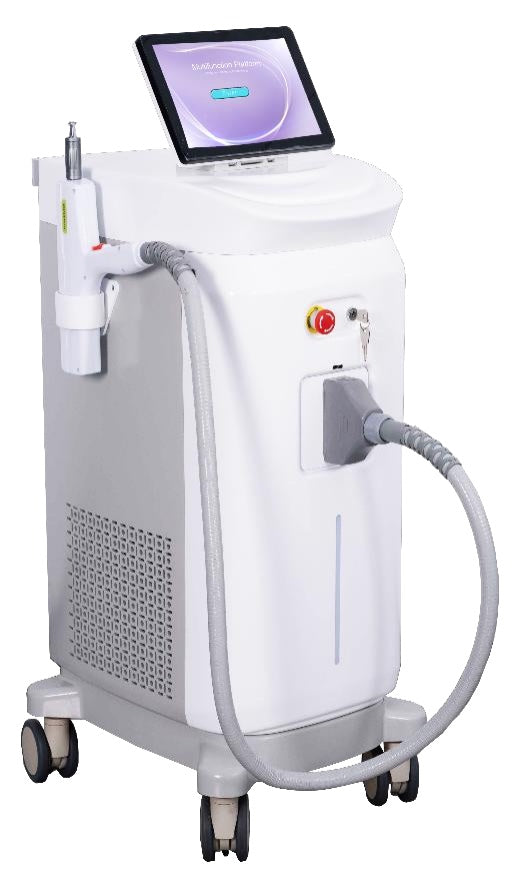

Bele STI XR 8-in-1 Multifunction Platform     Model: BL-M10

The multi-function platform is distinguish 8 different types of hand pieces automatically. It is perform most of your needs for skin & hair treatments.

 8-in-1 Multifunction Platform

Hand pieces:

1.  IPL  with  SHR  &  SSR
2.  808nm  Diode  laser
3.  Q-switch Nd:Ya g  laser

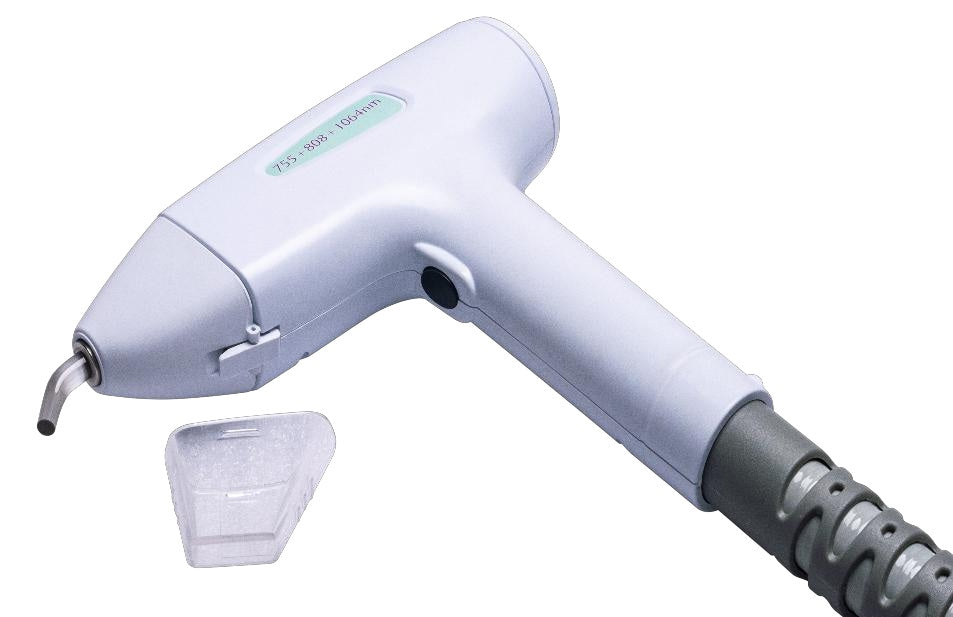

4.  755+808+1064nm Diode  laser
5.  1540nm  Er:Glass Fractional laser
6.  1064nm Long pulse Nd:Ya g  laser
7.  Picosecond laser
8.  2940nm  Er:Yag Fractional laser

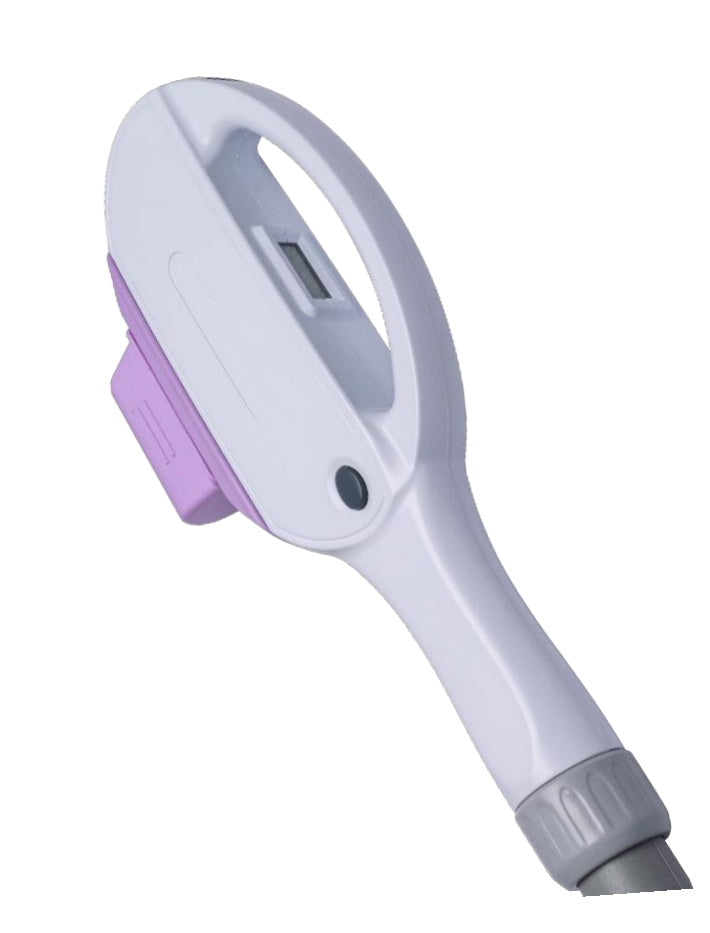

Technical specifications: Hand piece IPL
Spot size - 15*50mm or 12x35mm
Wavelength - 420~1200nm

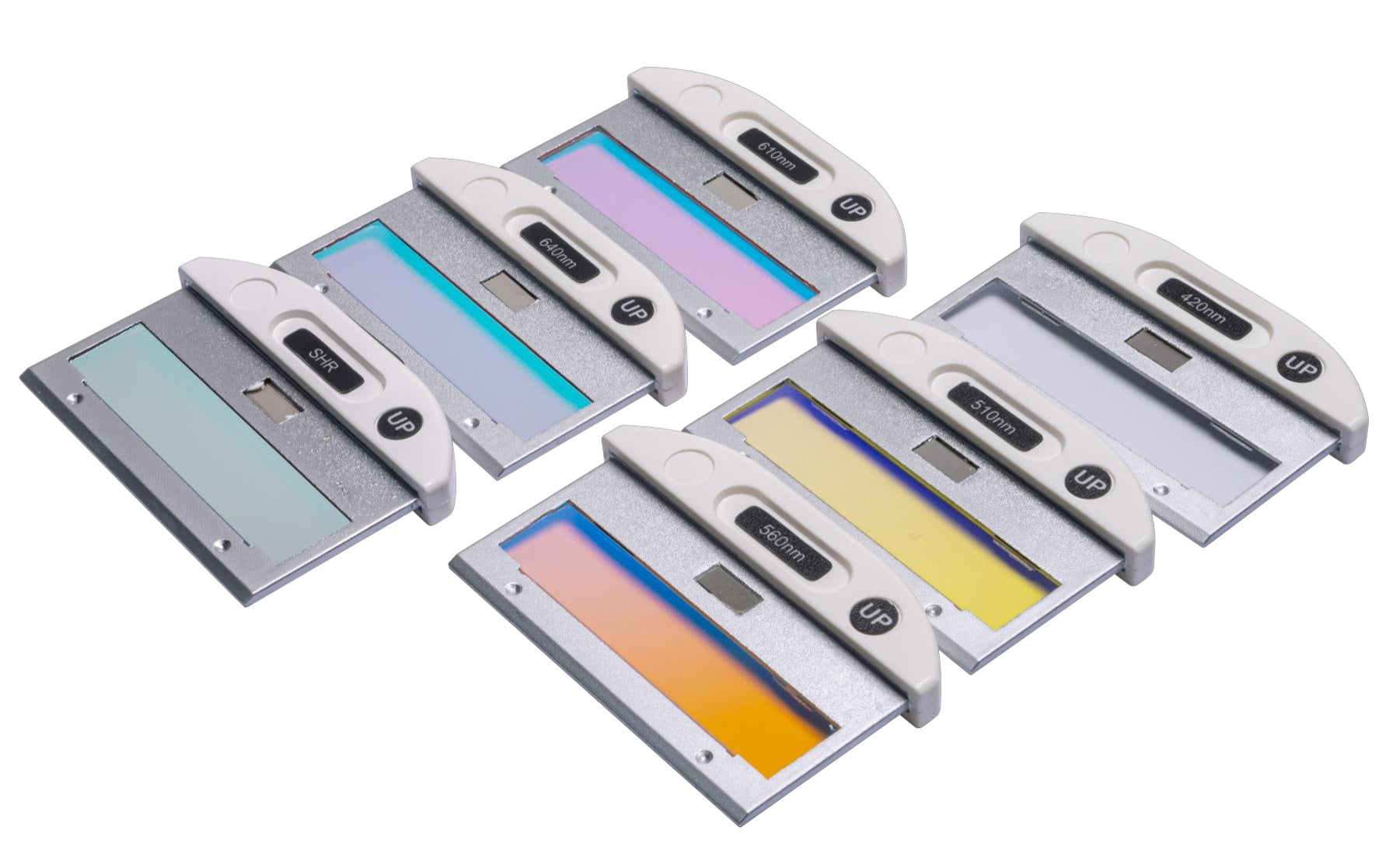

Filter - 420/510/560/610/640/SHR (standard)
Energy density 10-60 level
Pulse sequence 1-15 pulses
Pulse delay 5-50ms
Pulse width 2-20ms

●Permanent Hair removal
●Epidermal Pigment removal
●Skin Rejuvenation
●Vascular treatment
●Acne removal
●Spots and Freckles removal
●Skin Toning
●Skin firming and tightening

handle -Technical specifications:

Laser output
1000W
Spot size
12*23mm
Wavelength
808nm
Energy density
1-64J/ cm2
Pulse width
10-300ms
handle
Technical specifications:

Laser output
1000W
Spot size
12*23mm
Wavelength
755+808+1064nm
Energy density
1-64J/ cm2
Pulse width
10-300ms

tip - Diode laser applications: Painless diode laser hair removal


handle - Technical specifications:
 Wavelength- 1064nm/532nm/ beam expander/ Hollywood
Spot size
1-5mm
Pulse width
＜10ns
YAG Bar
Energy
2000mJ (1064nm),
1000mJ (532nm)
Repetition rate
1-10HZ

Q-switch Nd:Yag laser - applications:
uSoak lip and lip line removal
uTattoo and tattoo wound removal
uPigmented Nevus treatment
uSeborrheic Keratosis treatment
1064nm adjustment lens        532nm lens       Φ7 beam expander
uEmbroidered eyebrow removal
Technical specifications:

Wavelength
2940nm
Zoom lens
Φ1-3.5mm
Beam
expander
Φ6mm,Φ9mm
Fractional tip
7x7, 9x9(optional)
Energy
7x7 pixel: 12~28mJ/microbeam
9x9 pixel: 4~20mJ/microbeam
